Pulling Tension Analysis
Sequential capstan equation, sidewall pressure (7300 N/m), friction decay, weight correction — IEEE 1185 compliant.
Tray sizing, support statics, seismic, cable pulling, ductbank thermal and route design — one project, one calculation chain, one approved deliverable your site crew can actually use.
Built around international standards
Manufacturer catalogs included
From ampacity and tray fill to pulling, seismic, fire and support statics — nine integrated modules sharing one project model.
Sequential capstan equation, sidewall pressure (7300 N/m), friction decay, weight correction — IEEE 1185 compliant.
Full IEC 60364-5-52 tables B.52.17–21, NEC 310.16, BS 7671 — multi-tier derating, temperature & soil correction.
ASCE 7-22 (ap=2.5, Rp=6.0) and EN 1998-1 (Type 1/Type 2) — bracket, support, fastener checks.
EN 1993-1-2 steel reduction (ky/kE), DIN 4102-12 fire rating, IEC 60364-4-43 adiabatic I²·t = K²·S².

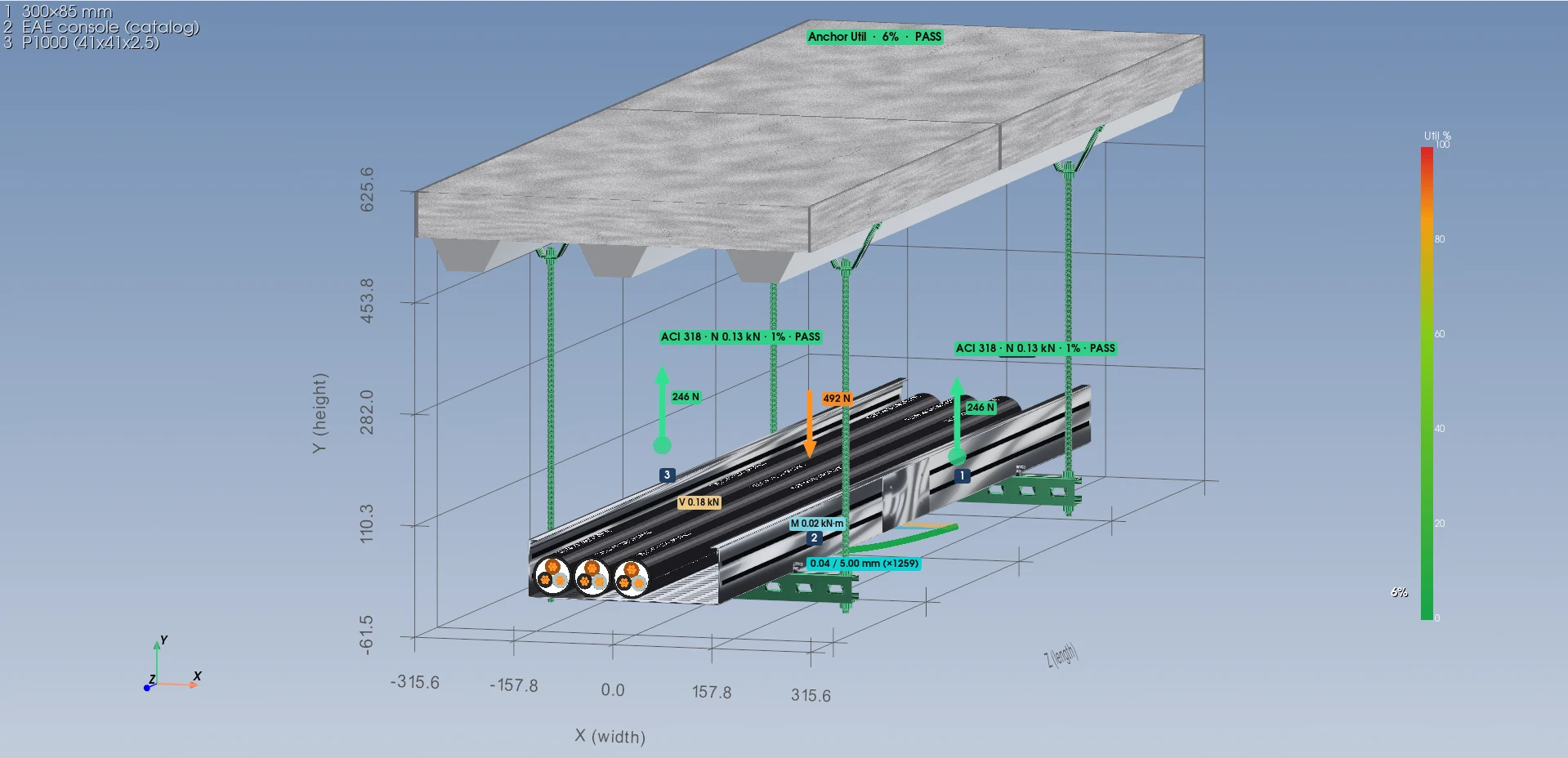

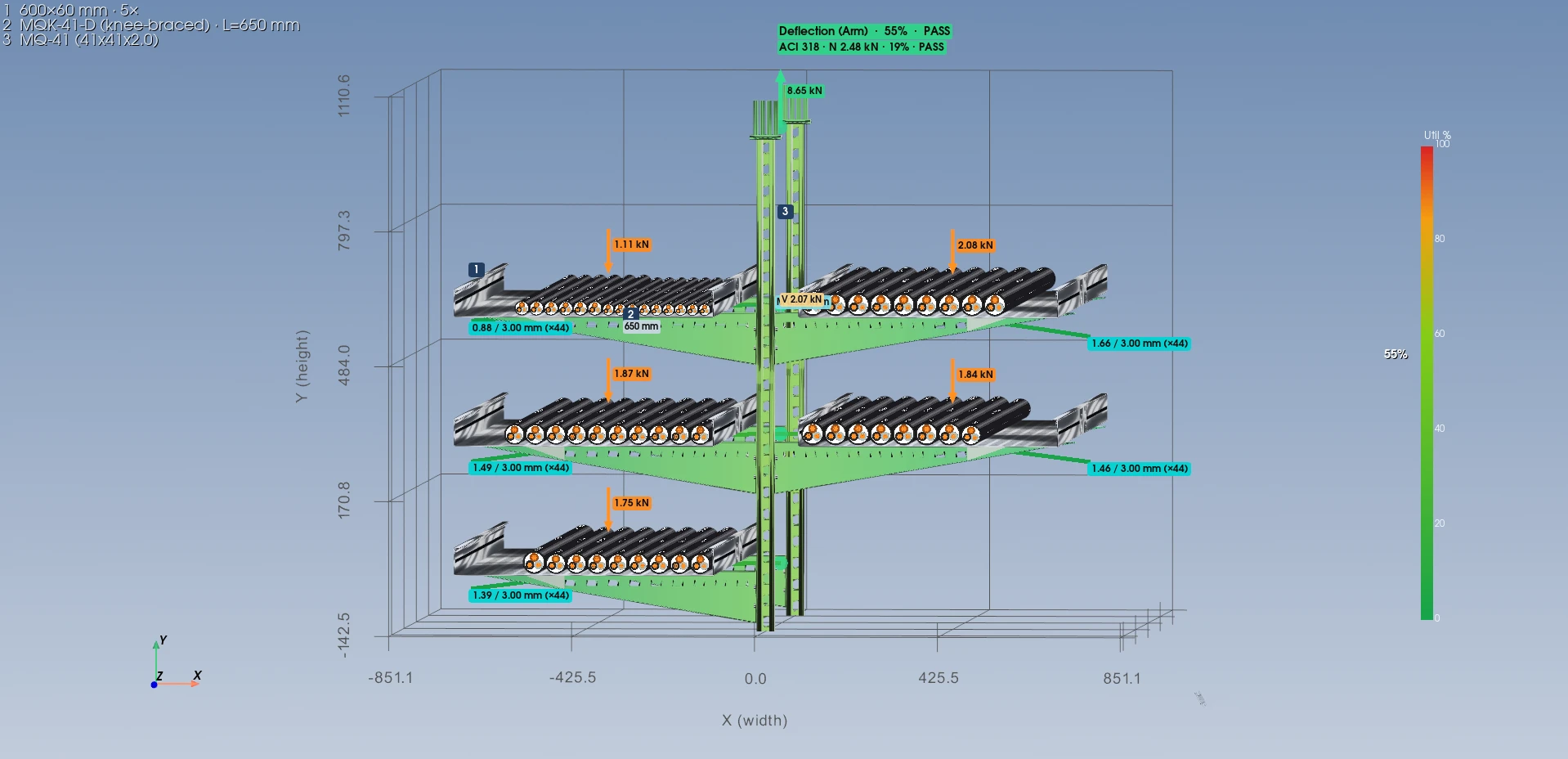

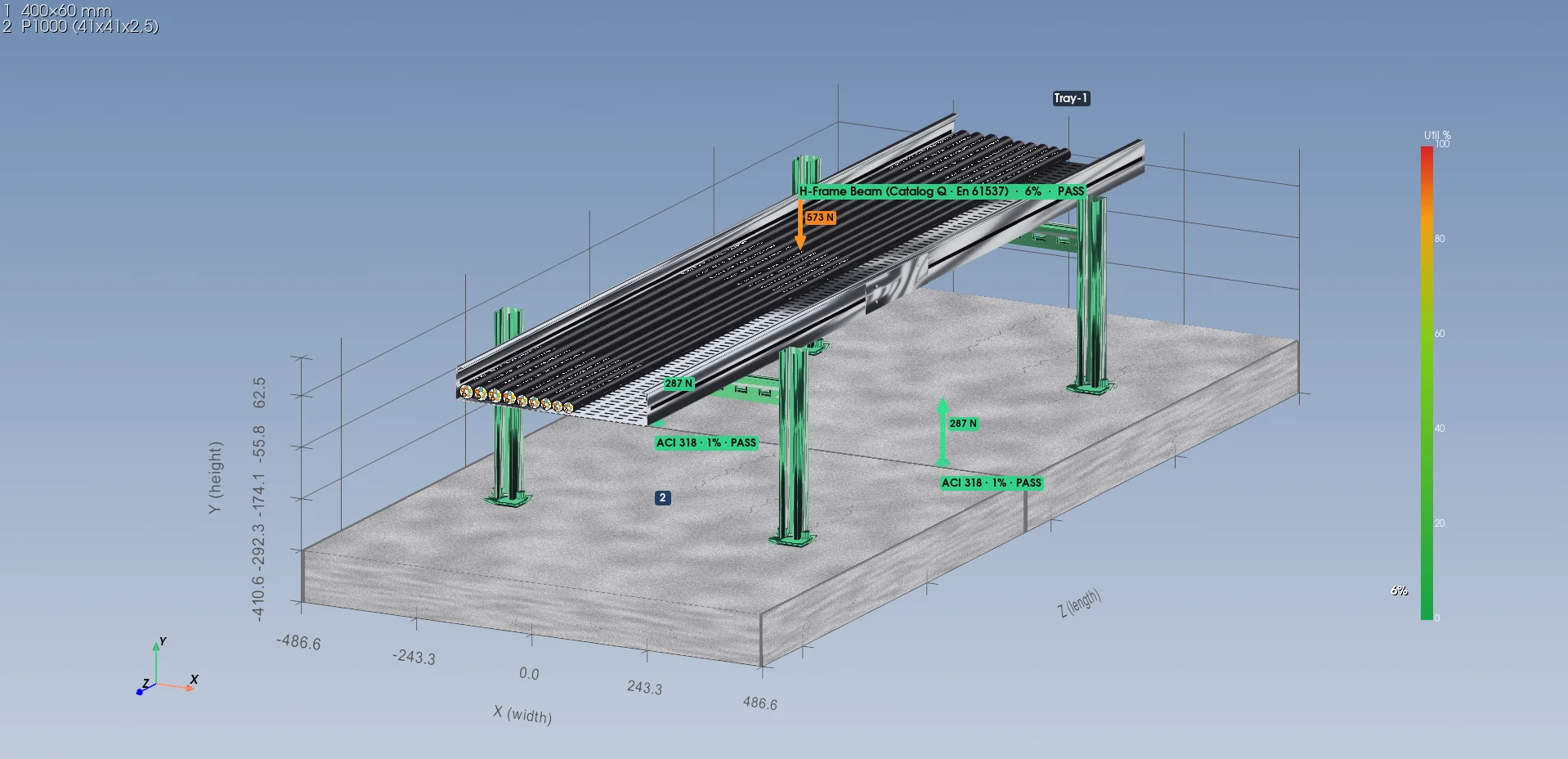

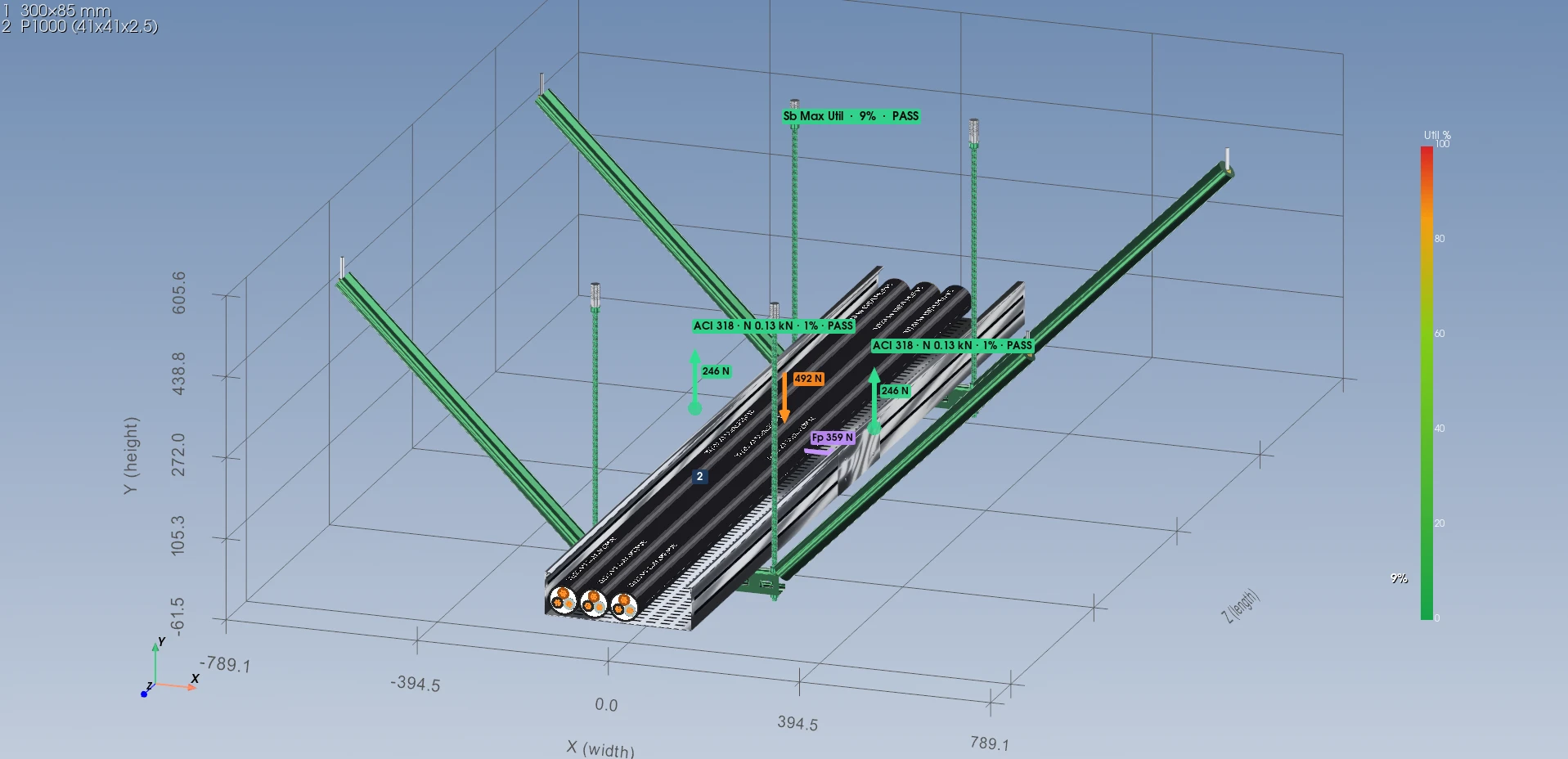

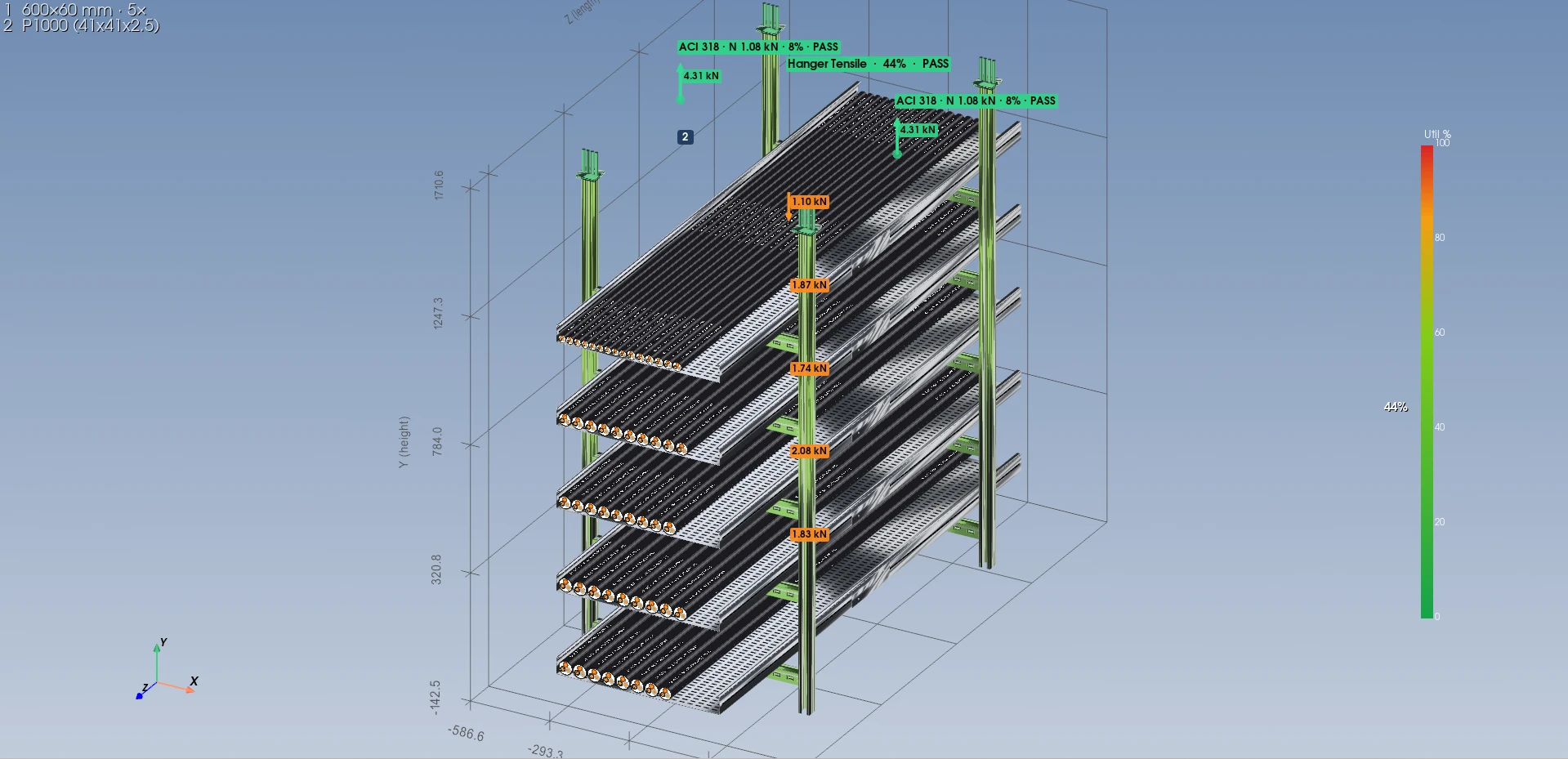

LOD 500 parametric 3D — every cable, support and anchor to scale, with stress colouring and force diagrams on the model.
Engineering PDF reports with title block, DXF drawings, Excel bill of materials and QR-coded field labels.
Print weather-resistant QR stickers. Scan in field — instant fill %, ampacity, revision, compliance status. No app needed.
Interactive route sketching — click to place, ortho and grid snap. DXF round-trip with IEC 60617 symbol library.

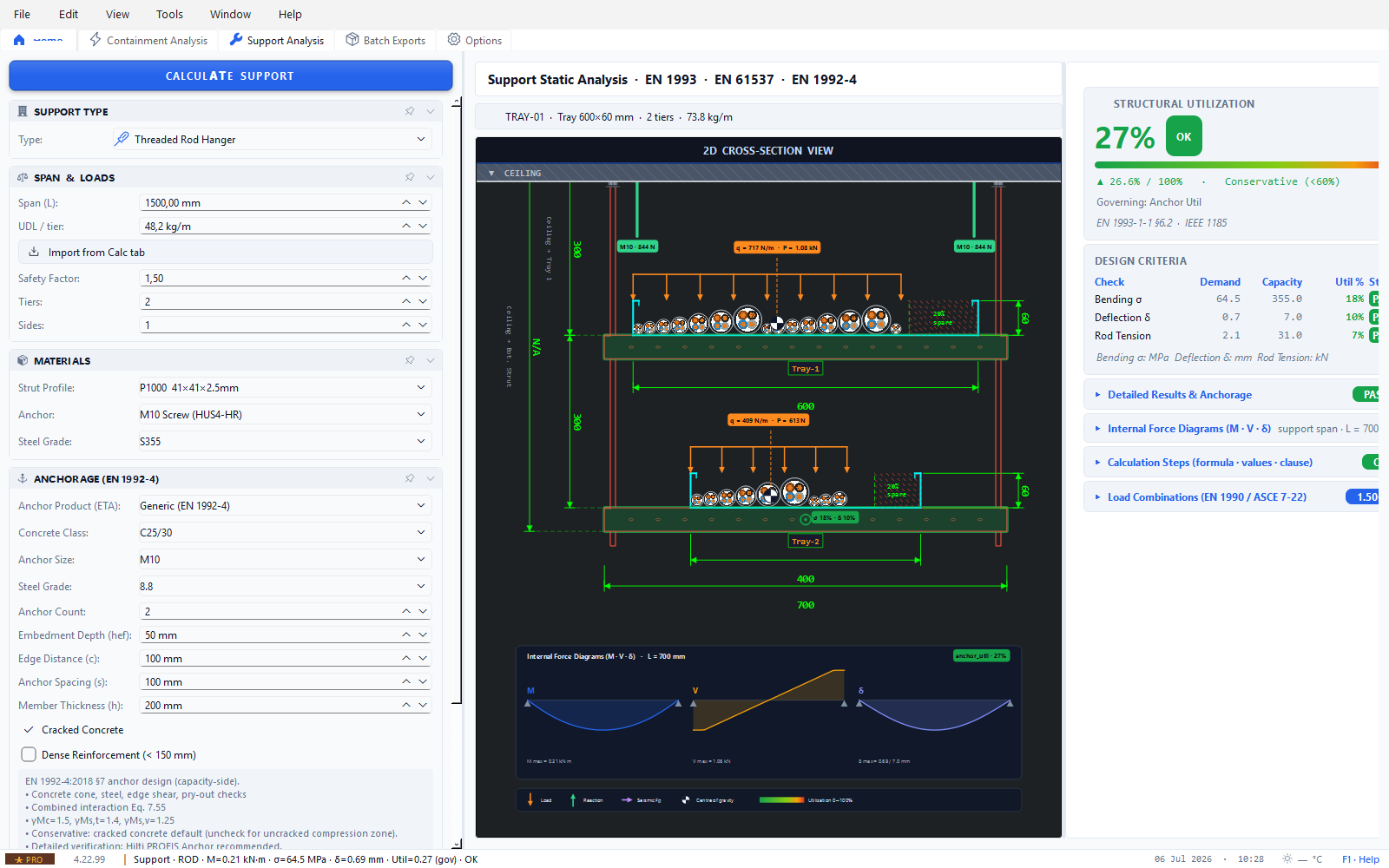

8 support types with EN 1993 member checks, EN 1992-4 concrete anchor design, M/V/δ diagrams and real manufacturer catalogs.

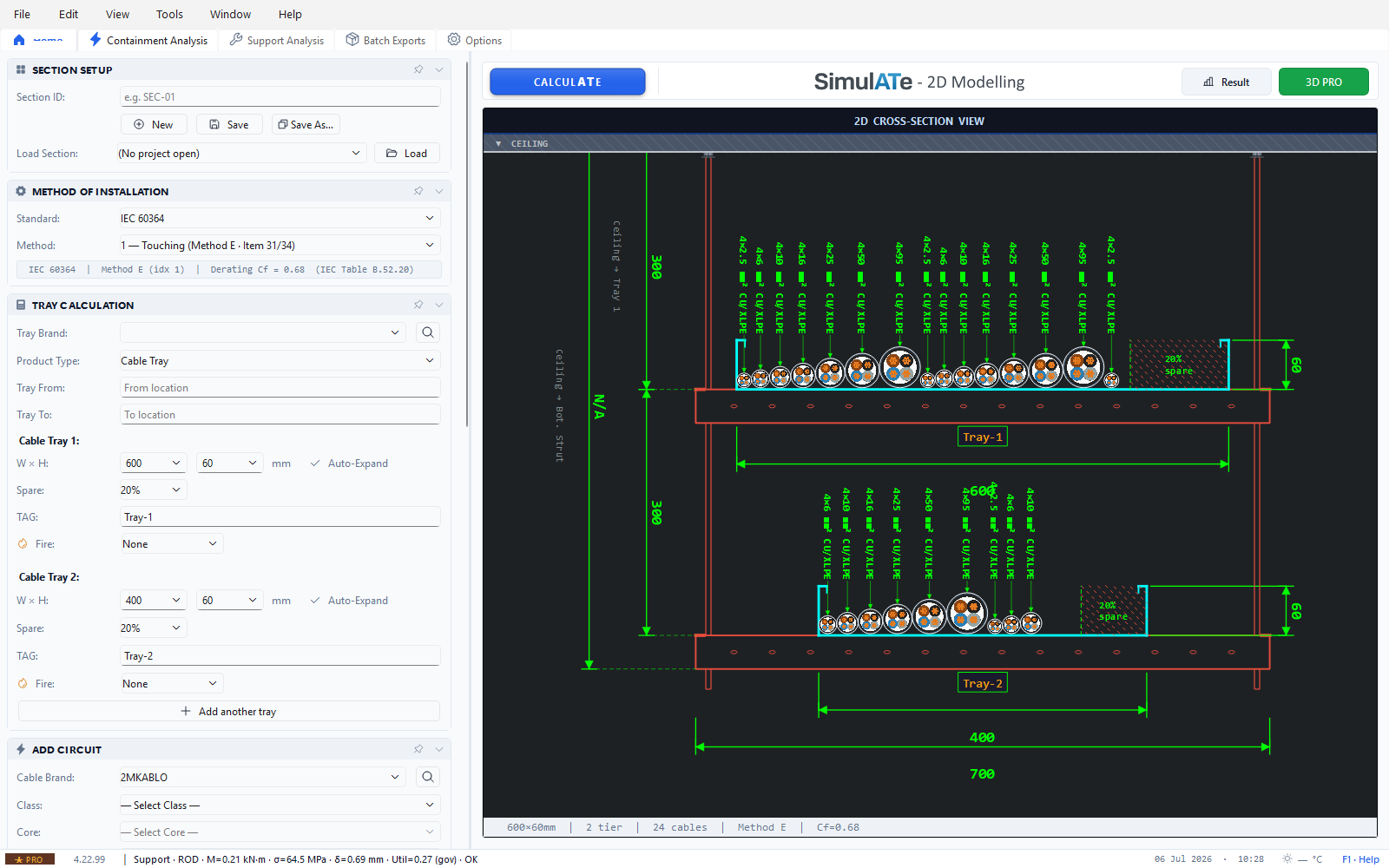

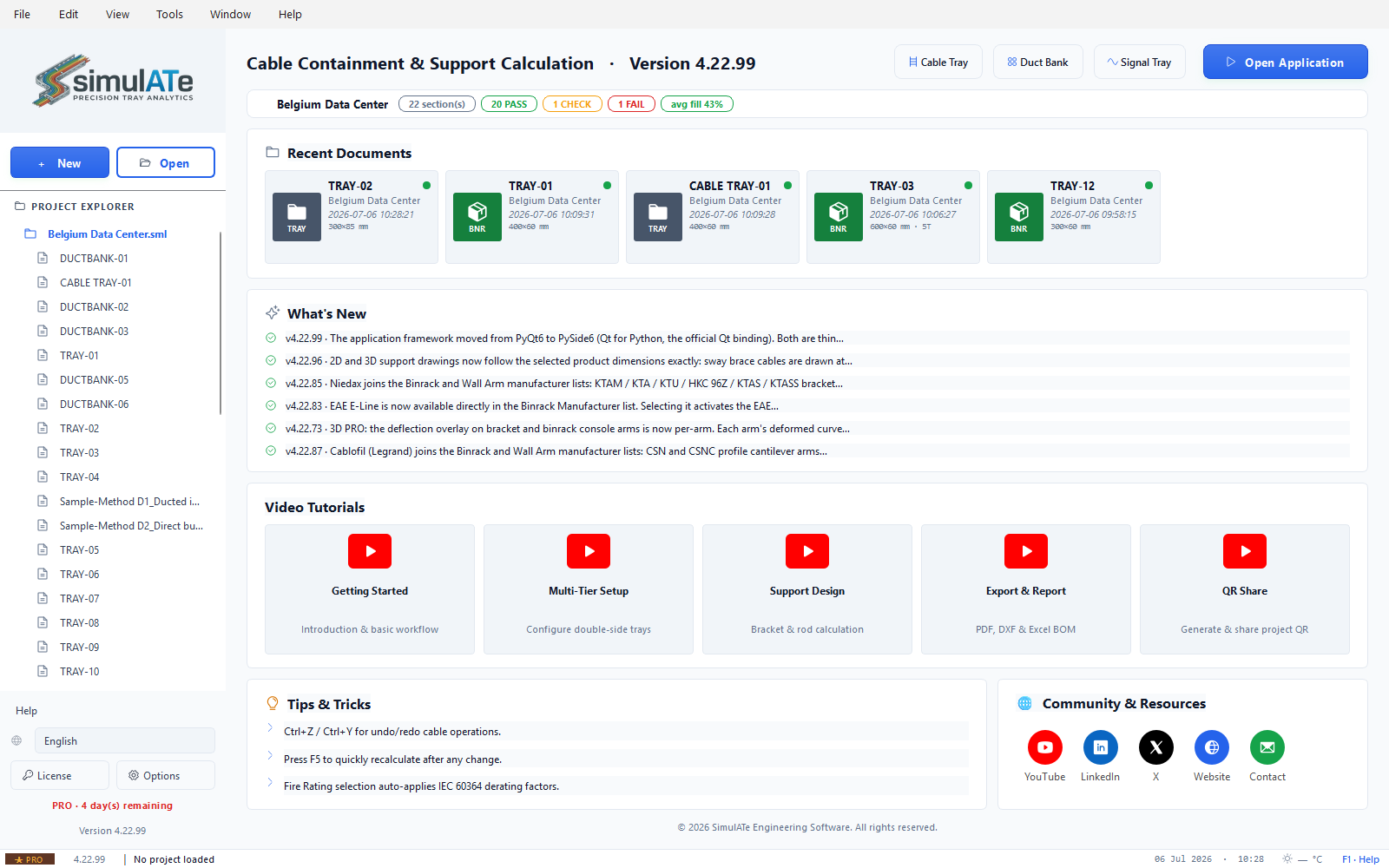

Every image below is an unedited screenshot taken directly from the application.
Every tray gets a printable QR sticker. Scan it on site to see real-time fill, ampacity, compliance status — without opening a laptop or returning to the office.
simulATe builds a printable PDF sticker sheet with QR + tray ID + key specs. Use any label printer.
Stick during installation. Weather-resistant material — survives outdoor, industrial and humid environments.
Any phone camera works. See fill %, ampacity, last calc revision, compliance — opens in browser. No app, no login.
Every calculation traces to a published table or formula — verified against industry reference software.
